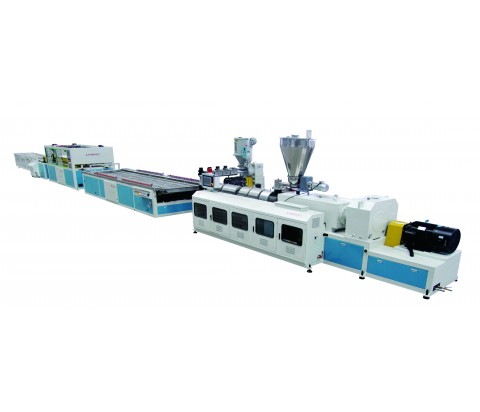

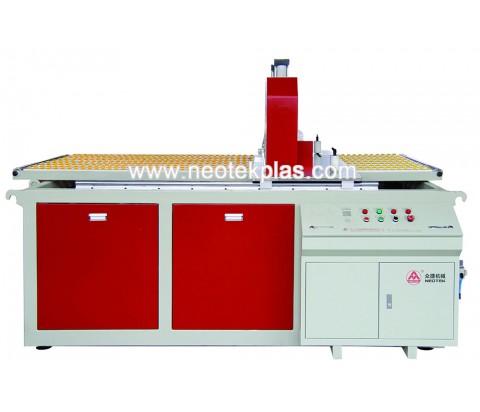

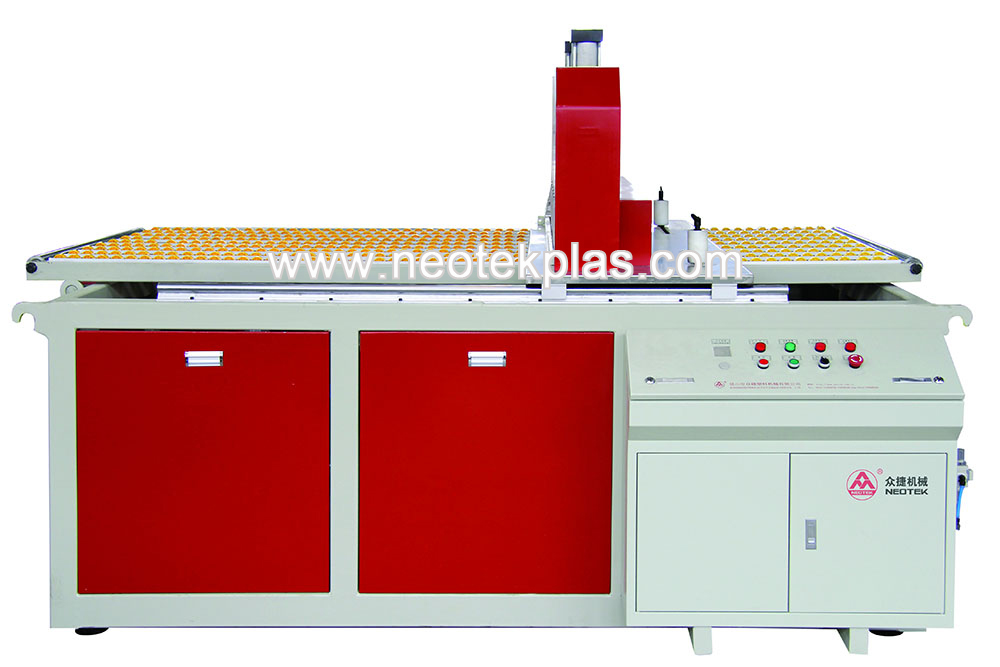

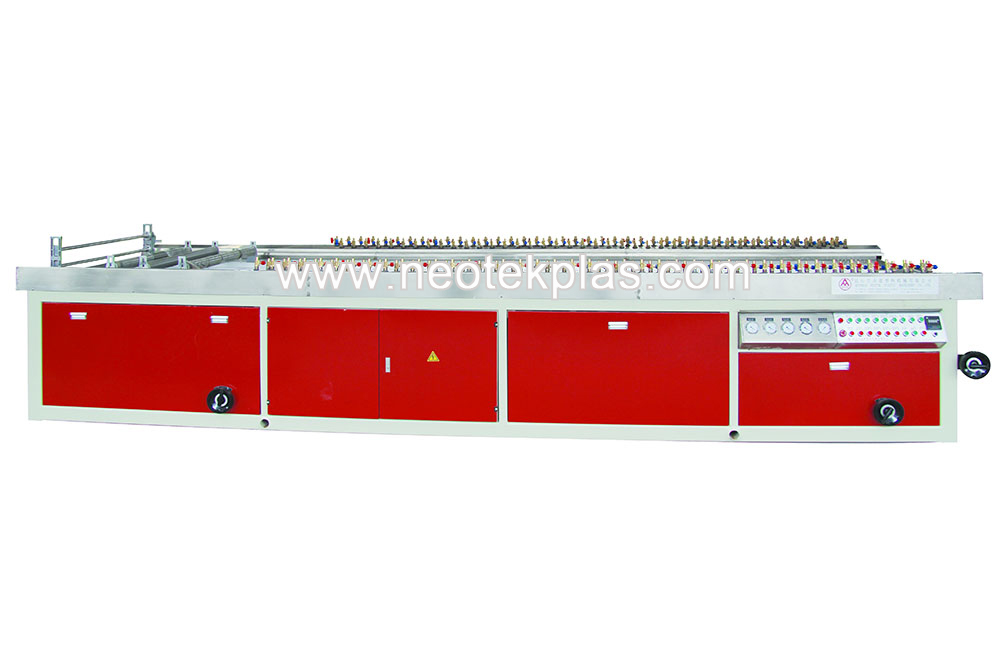

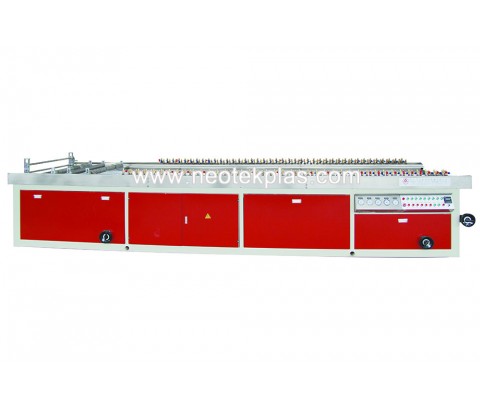

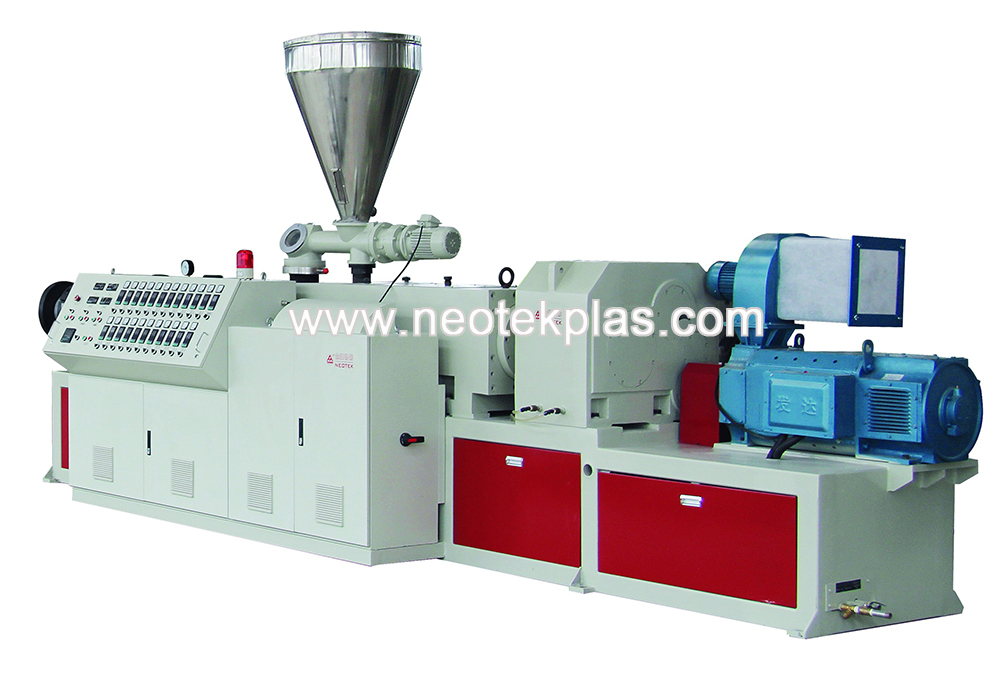

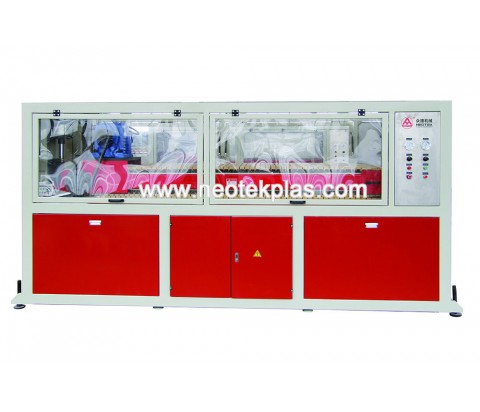

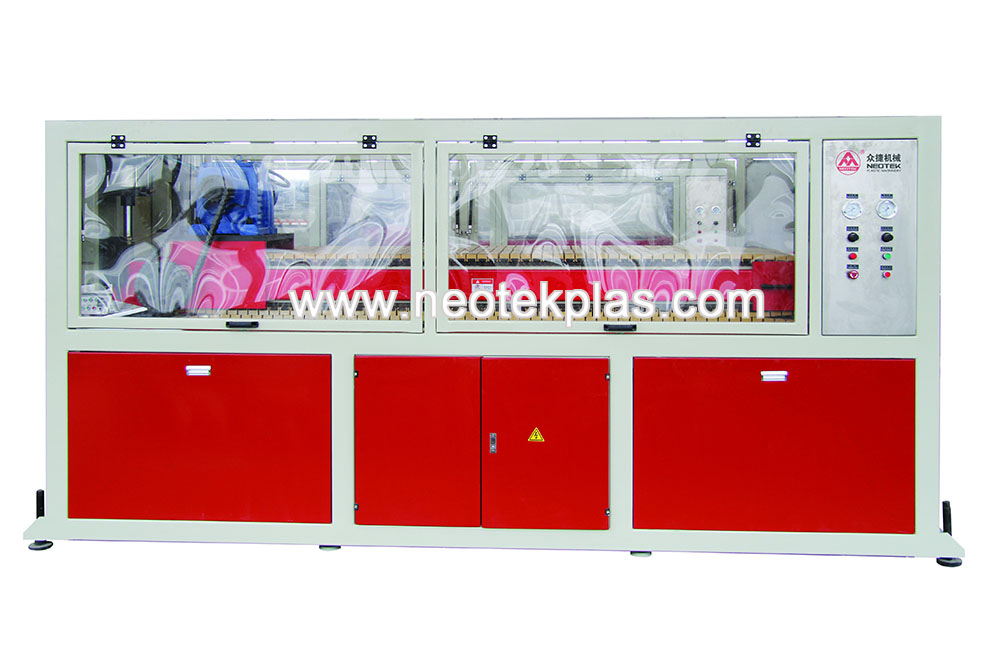

生產線采用SJZ錐形雙螺桿擠出機,輔機由真空定徑臺、牽引機、切割機及堆料架組成。
This extrusion line consists of conical twin screw extruder,vacuum calibrator table,haul off,cutter and stacker.
擠出機型號 Extruder model | SJZ80/156 | SJZ92/188 |
傳動功率 Motor power | 55 | 110-132 |
螺桿直徑 Screw diameter | 80/156 | 92/188 |
螺桿轉速 Screw rotation speed | 34.7 | 34.7 |
PVC產量 Output capacity(PVC) | 250-400 | 500-700 |
輔機型號 Downstream machine type | YF-600(800) | YF-1000(1250) |
最大板材寬度 Max profile width | 600(800) | 1000(1250) |
輔機總功率 Total power(without extuder) | 45 | 65 |
冷卻水容量 Chilled water capacity | 25 | 25 |
壓縮空氣壓力 Compressed air pressure | 0.4-0.7 | 0.4-0.7 |
